Quick Performance Matrix
Capacity Range:
500 Liters to 100,000 Liters (Vertical & Horizontal)
MOC Options:
SS316, SS304, MS (Mild Steel)
Motor Drive:
Static Atmospheric / Pressurized Liquid Storage
Output Fineness:
ASME Section VIII & API 650 Standards Compliance
Origin / Plant:
Vatva GIDC, Ahmedabad, India
Engineering Overview & Design Highlights

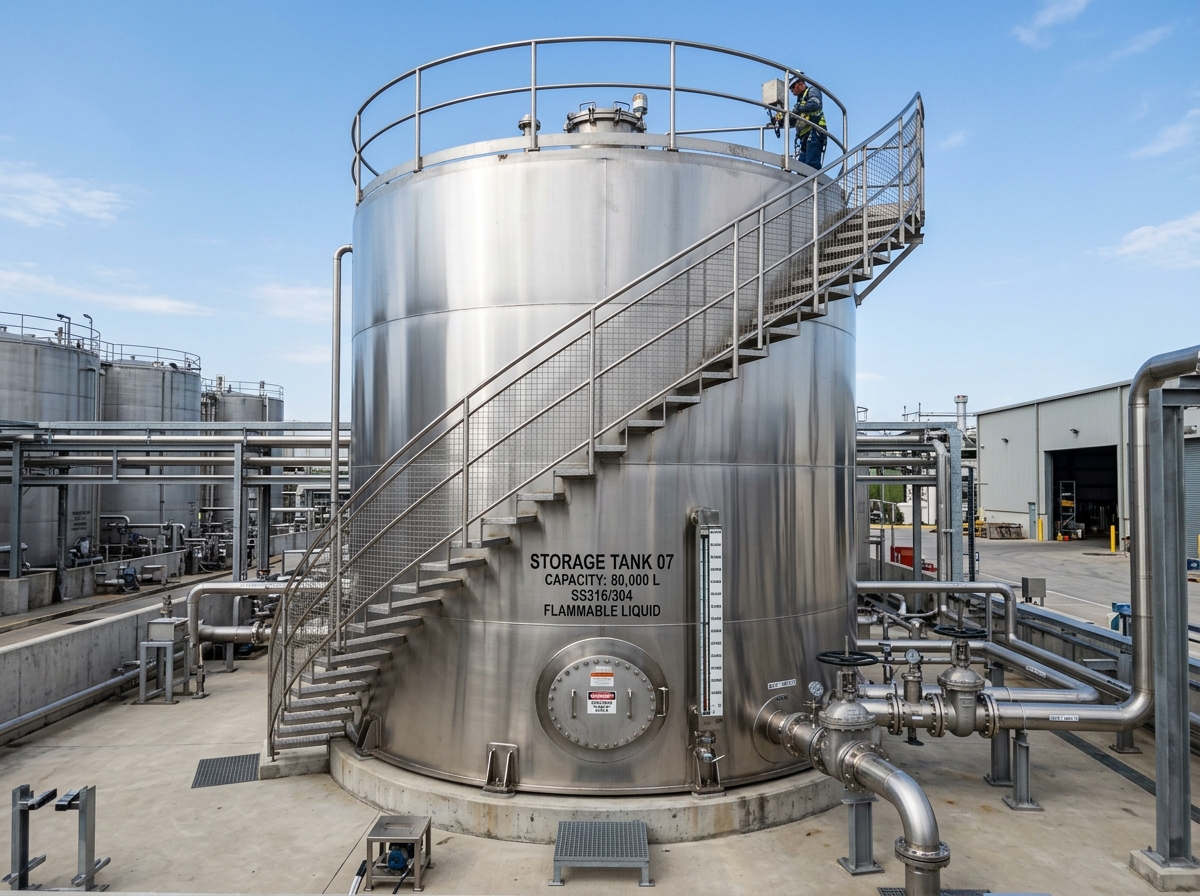

Jay Mahakali Engineering & Fabricators manufactures heavy-duty Industrial Chemical Storage Tanks in vertical and horizontal orientations. Built in Vatva GIDC, Ahmedabad to store solvents, acids, alkalis, liquid resins, petrochemicals, liquid fertilizers, and food syrups under strict structural and environmental safety standards.
Working Principle & Mechanical Operation
Fabricated using precision rolled stainless steel plates with dish ends or flat bottoms. Tanks are outfitted with flanged liquid inlet/outlet nozzles, vent connections with flame arrestors, continuous hydrostatic level transmitters or tubular sight gauges, top inspection manholes, and safety overflow nozzles.
Salient Features & Technical Advantages
-
Engineered to API 650, IS 2825, and ASME standards with hydrostatic leak testing.
-
Choice of vertical cylindrical on legs/skirt or horizontal cylindrical on saddle supports.
-
Internal corrosion protection: Mirror polish Ra < 0.2 µm, acid passivation, or rubber/FRP/PTFE linings.
-
Outfitted with safety monkey ladder, top railing with toe guard, and calibrated level indicators.
-
Double-welded joints inspected via dye-penetrant testing (DPT) and radiography.
Comprehensive Technical Specifications
| Technical Parameter |
Standard Engineering Specification |
| Storage Capacity |
500 Liters up to 100,000 Liters (0.5 kL to 100 kL) |
| Orientation |
Vertical Cylindrical or Horizontal Saddle Mounted |
| Material of Construction |
SS316, SS304, MS (Mild Steel) |
| Accessories |
Top manhole (450 mm to 600 mm), level gauge, breather valve, ladder, sampling port |
| Testing |
100% Hydrostatic water fill test for 24 hours prior to dispatch |
| Manufacturing Plant |
Phase-1, Vatva GIDC, Ahmedabad, Gujarat, India |
| Compliance Standards |
ASME Section VIII Div 1, IS 2825 & cGMP Sanitary Standards |
| Export Packaging |
ISPM-15 Fumigated Seaworthy Wooden Box with Rust-Preventive VCI Wrapping |
| Dispatch Location |
Vatva GIDC, Ahmedabad, Gujarat, India (Direct Domestic & Global Dispatch) |
| International Trade Terms |
FOB, CIF, CFR, Ex-Works & Letter of Credit (LC / TT) |
Industrial Applications
Chemical & Solvent Storage: Acids, caustic soda, methanol, ethyl acetate, benzene, resins.
Pharmaceuticals: Purified water (PW), WFI storage tanks, sterile liquid formulations.
Food & Beverages: Edible oils, glucose syrups, liquid sugar, juice concentrates.
Frequently Asked Questions About Industrial Chemical Storage Tank
Can the tank handle corrosive acids like hydrochloric or sulfuric acid?
Yes, for aggressive acids we provide SS316L with electropolishing or heavy-duty internal rubber, FRP, or PVDF lining that completely isolates the metal from acid contact.
