Quick Performance Matrix
Capacity Range:
5 Liters to 100 Liters (5 kg to 50 kg / batch)
MOC Options:
SS316, SS304, MS (Mild Steel)
Motor Drive:
0.5 HP to 3 HP Geared Motor
Output Fineness:
Uniform 99.8% Homogeneity
Origin / Plant:
Vatva GIDC, Ahmedabad, India
Engineering Overview & Design Highlights

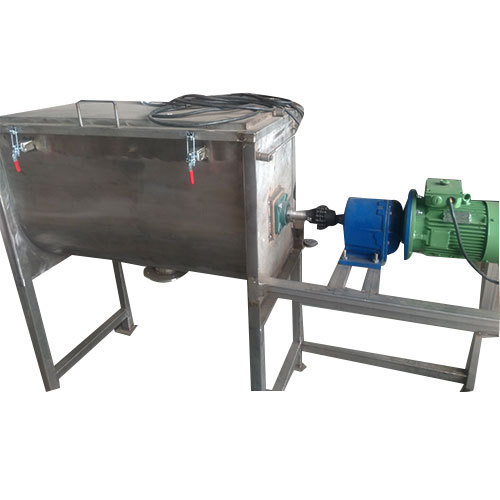

The JMEF Laboratory Model Ribbon Blender is specifically engineered for pharmaceutical research institutions, food technology test labs, and chemical development centers. Providing exact scale-up parameters for industrial batch production, this blender delivers precision cross-flow mixing in miniature batches.
Working Principle & Mechanical Operation
Equipped with a counter-acting double helical ribbon agitator, the outer ribbons move material from ends toward center, while the inner ribbons push powder from center outward. This generates continuous radial and axial fluidization for uniform mixing within 3 to 8 minutes.
Salient Features & Technical Advantages
-
Full cGMP compliance with mirror-polished interior (Ra < 0.2 µm) and zero dead spots.
-
Acrylic transparent top cover with magnetic safety switch and liquid spraying port.
-
Flush-bottom discharge ball/butterfly valve with zero residual powder holdup.
-
Flame-proof electrical controls and digital batch timer available.
Comprehensive Technical Specifications
| Technical Parameter |
Standard Engineering Specification |
| Working Volume |
5 L, 10 L, 25 L, 50 L, 100 L |
| Batch Capacity |
3 kg to 50 kg (depending on bulk density) |
| Motor Drive |
0.5 HP to 3 HP geared motor with VFD speed regulation |
| Finish |
Mirror Polish 240 to 320 Grit Interior, Matt Satin Exterior |
| Safety |
Interlocked safety limit switch on lid |
| Manufacturing Plant |
Phase-1, Vatva GIDC, Ahmedabad, Gujarat, India |
| Compliance Standards |
ASME Section VIII Div 1, IS 2825 & cGMP Sanitary Standards |
| Export Packaging |
ISPM-15 Fumigated Seaworthy Wooden Box with Rust-Preventive VCI Wrapping |
| Dispatch Location |
Vatva GIDC, Ahmedabad, Gujarat, India (Direct Domestic & Global Dispatch) |
| International Trade Terms |
FOB, CIF, CFR, Ex-Works & Letter of Credit (LC / TT) |
Industrial Applications
Pharmaceuticals: API dry mixing, granulation premixes, tablet powders.
Food & Flavors: Seasonings, beverage powders, instant nutrition powders.
Cosmetics: Talcum powders, mineral foundations, cosmetic colors.
Frequently Asked Questions About Laboratory Model Ribbon Blender
Can we validate scale-up mixing parameters on this lab blender?
Yes, our lab blenders replicate the exact geometric ribbon ratios, Froude numbers, and peripheral speeds of our full-scale production blenders.
Direct Factory Price
Request a Quote for Laboratory Model Ribbon Blender
Get direct manufacturer pricing from our Vatva GIDC, Ahmedabad engineering plant.
