Quick Performance Matrix
Capacity Range:
1,000 Liters to 100,000 Liters (1 kL to 100 kL)
MOC Options:
SS316, SS304, MS (Mild Steel)
Motor Drive:
Equipped with Grounding Bosses, Flame Arrestor & Level Transmitters
Output Fineness:
Designed to API 650, IS 2825 & ASME Code Standards (100% Hydrotested)
Origin / Plant:
Vatva GIDC, Ahmedabad, India
Engineering Overview & Design Highlights

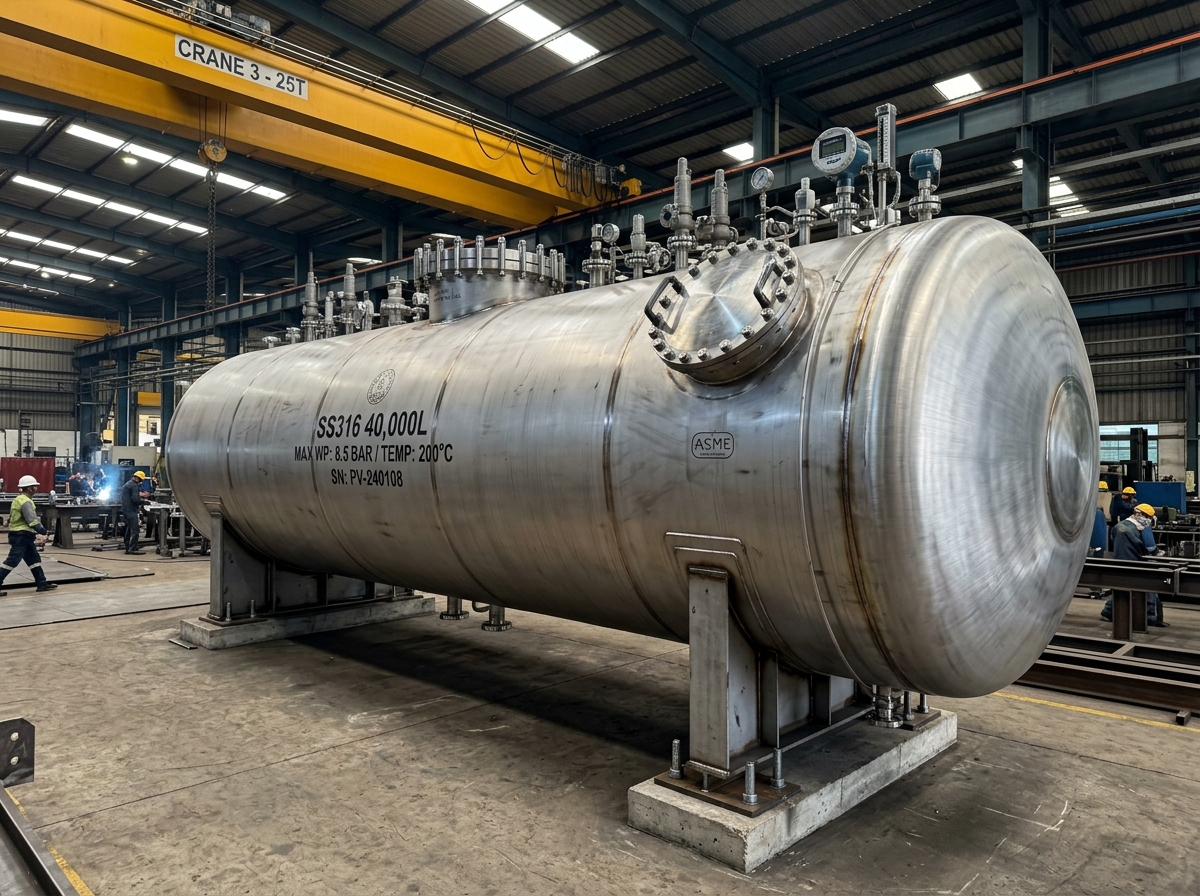

The JMEF Horizontal Industrial Storage Tank (Bullet Tank) is engineered for high-volume storage of solvents, petrochemicals, diesel, corrosive acids, and liquid raw materials where vertical headroom is limited or low-profile wind resistance is required. Fabricated in Vatva GIDC, Ahmedabad with heavy saddle supports, dished ends, and safety piping manifolds.
Working Principle & Mechanical Operation
Liquid is pumped in through top flanged nozzles into the horizontal cylindrical shell. Structural saddle supports distribute the high static liquid weight evenly across civil foundations. Baffle plates inside mitigate liquid sloshing during dynamic filling, and calibrated radar or hydrostatic level sensors continuously monitor inventory.
Salient Features & Technical Advantages
-
Low-profile horizontal geometry ideal for indoor basement installations or outdoor tank farms.
-
Engineered heavy-duty structural saddle supports with wear plates to prevent localized shell stress.
-
Fabricated with torispherical or ellipsoidal dished ends for superior pressure and vacuum containment.
-
Internal coating options: Epoxy, polyurethane, rubber lining, or pickling/passivation for stainless steel.
-
Complete accessory package: Top 500 mm manhole, breather valve with flame arrestor, dip hatch, and drain nozzle.
Comprehensive Technical Specifications
| Technical Parameter |
Standard Engineering Specification |
| Storage Volume |
1,000 L to 100,000 L |
| Tank Diameter |
1,000 mm to 3,600 mm; Length up to 15 meters |
| Shell Thickness |
6 mm to 20 mm heavy steel plates |
| Support Type |
Heavy Twin Saddle Supports with anchor bolt holes |
| Design Standard |
API 650, UL 142, IS 2825, ASME Section VIII |
| Manufacturing Plant |
Phase-1, Vatva GIDC, Ahmedabad, Gujarat, India |
| Compliance Standards |
ASME Section VIII Div 1, IS 2825 & cGMP Sanitary Standards |
| Export Packaging |
ISPM-15 Fumigated Seaworthy Wooden Box with Rust-Preventive VCI Wrapping |
| Dispatch Location |
Vatva GIDC, Ahmedabad, Gujarat, India (Direct Domestic & Global Dispatch) |
| International Trade Terms |
FOB, CIF, CFR, Ex-Works & Letter of Credit (LC / TT) |
Industrial Applications
Chemical & Solvents: Bulk storage of toluene, hexane, ethanol, acetone, ethyl acetate.
Petroleum & Fuels: Industrial diesel generator (DG) fuel tanks, furnace oil storage, kerosene.
Water & Firefighting: Industrial raw water, RO permeate water, fire water reserve storage.
Frequently Asked Questions About Horizontal Industrial Storage Tank (Bullet Tank)
Are your horizontal storage tanks suitable for underground installation?
Yes, we manufacture underground double-walled tanks coated with heavy bituminous coating or high-build fiberglass reinforced epoxy (FRP) to prevent exterior soil corrosion.
Direct Factory Price
Request a Quote for Horizontal Industrial Storage Tank (Bullet Tank)
Get direct manufacturer pricing from our Vatva GIDC, Ahmedabad engineering plant.
